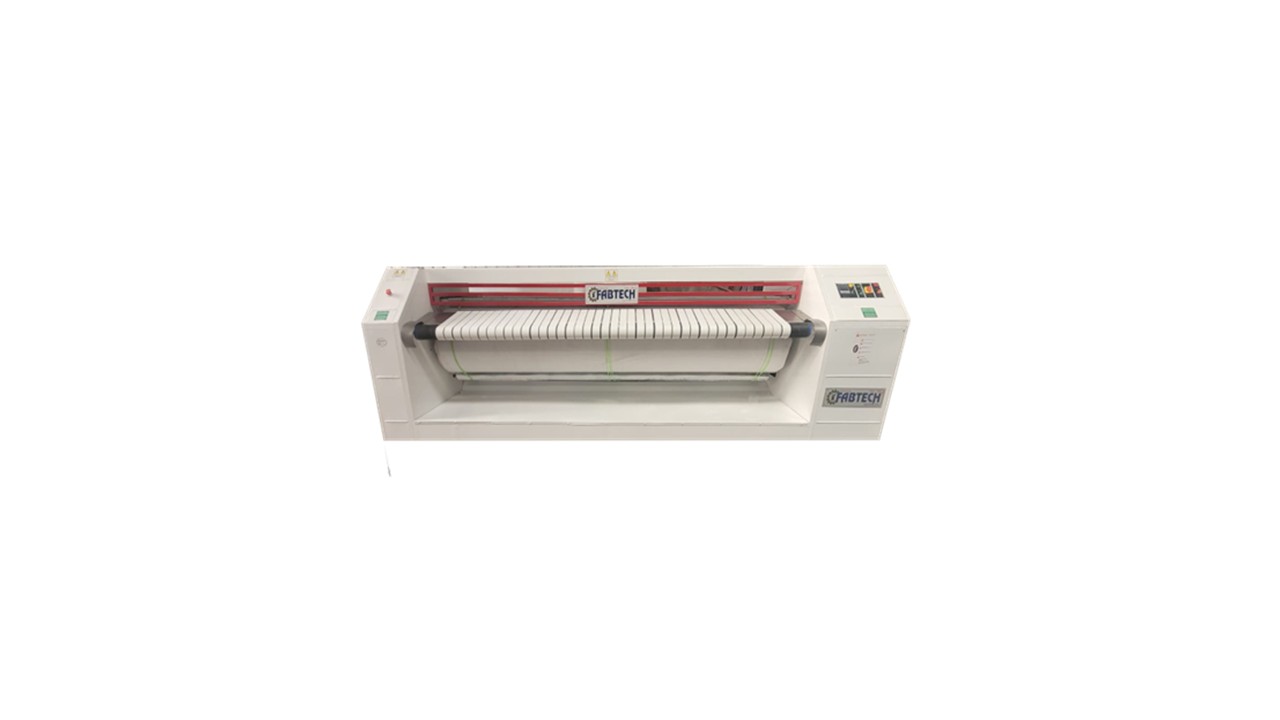

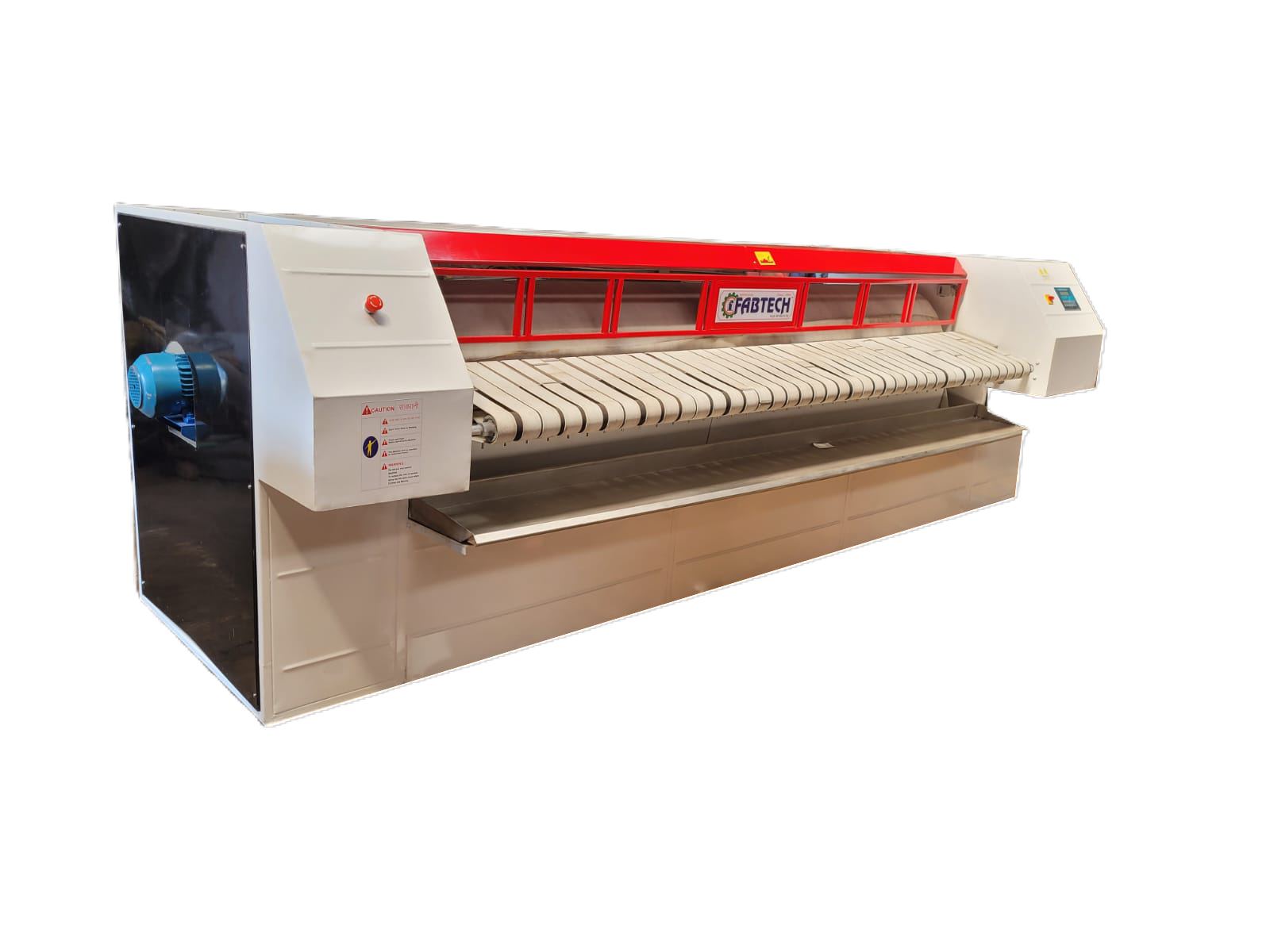

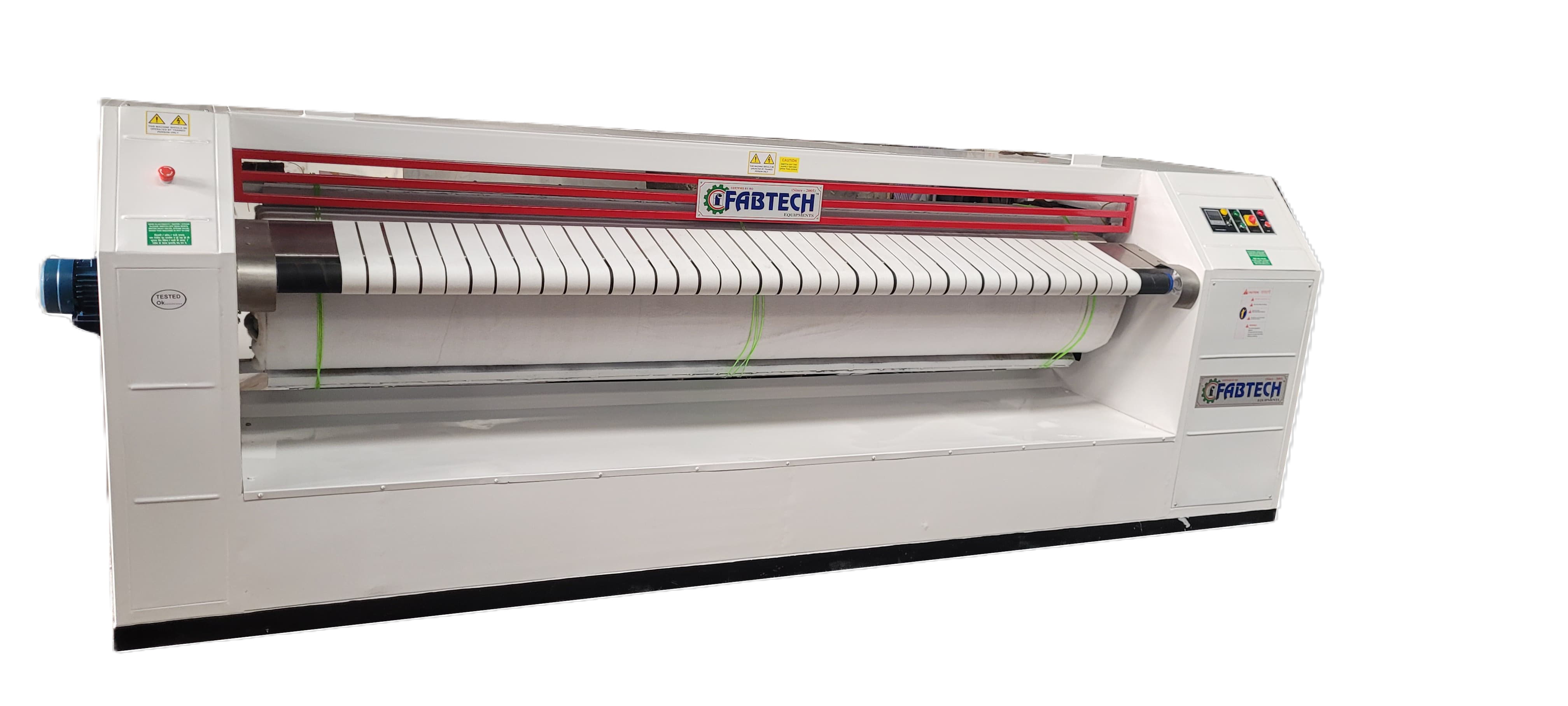

Industrial Flat Work Iron Machine

Parameter

FIS 18 1 ROLL

FIS 24 1 ROLL

FIS 36 1 ROLL

FIS 34 2 ROLL

Roller Size

457 x 3000 L

600 x 3000 L

830 x 3300 L

830 x 3300 L

Motor Drive (Suction)

1.0 kW

2.25 kW

5.6 kW

5.6 kW

Motor Drive (Other)

0.37 kW

0.75 kW

0.75 kW

1.75 kW

Steam Connection Size

0.5" BSP

0.5" BSP

1" BSP

1.5" BSP

Steam Consumption

50 KG/HR

80 KG/HR

150 KG/HR

350 KG/HR

Air Connection Size

0.5" BSP

0.5" BSP

0.5" BSP

0.5" BSP

Air Consumption

25 LTS/MIN

75 LTS/MIN

100 LTS/MIN

100 LTS/MIN

Overall Dimensions (WxDxH)

3700 x 1050 x 1370 mm

3700 x 1250 x 1570 mm

4800 x 2200 x 1800 mm

4500 x 3600 x 1600 mm

Net Weight

1520 KG

2800 KG

4900 KG

8000 KG

Voltage/Frequency

[415 ± 10% V AC,Three phase 50 Hz]

[415 ± 10% V AC,Three phase 50 Hz]

[415 ± 10% V AC,Three phase 50 Hz]

[415 ± 10% V AC,Three phase 50 Hz]

Material Compatibility

Bedsheets, linens, tablecloths

Bedsheets, linens, tablecloths

Bedsheets, linens, tablecloths

Bedsheets, linens, tablecloths

Certifications

[ CE, ISO]

[CE, ISO]

[CE, ISO]

[CE, ISO]

Warranty

[1 year]

[1 year]

[1 year]

[1 year]
