Industrial Drying Tumble Machine
Fast & Efficient Drying Solution
Parameter | DTS 20 | DTS 30 | DTS 60 | DTS 120 | DTS 240 |
Capacity (Dry Weight) | 20 KG | 30 KG | 60 KG | 120 KG | 240 KG |
Basket Size | 800 dia x 550 mm | 900 dia x 1000 mm | 1250 dia x 1050 mm | 1380 dia x 1150 mm | 1100 mm |
Drive Motor | 0.37 KW | 0.75 KW | 1.5 KW | 3.75 KW | 7.5 KW |
Steam Connection | 0.5" BSP / 15 KG/HR | 0.5" BSP / 35 KG/HR | 0.5" BSP / 60 KG/HR | 1" BSP / 120 KG/HR | 1" BSP / 240 KG/HR |
Electric Heating | 12 KW | 24 KW | 36 KW | N.A | N.A |
Dimensions (WxDxH) | 1000 x 1240 x 1920 mm | 1050 x 1540 x 1980 mm | 1300 x 1690 x 2300 mm | 1760 x 2050 x 2720 mm | 4320 x 1660 x 1320 mm |
Net Weight | 340 KG | 480 KG | 780 KG | 1220 KG | 2400 KG |
Voltage/Frequency | [415 ± 10% V AC,Three phase 50 Hz] | [415 ± 10% V AC,Three phase 50 Hz] | [415 ± 10% V AC,Three phase 50 Hz] | [415 ± 10% V AC,Three phase 50 Hz] | [415 ± 10% V AC,Three phase 50 Hz] |
Material | 304-Grade Stainless Steel | 304-Grade Stainless Steel | 304-Grade Stainless Steel | 304-Grade Stainless Steel | 304-Grade Stainless Steel |
Certifications | [ CE, ISO] | [CE, ISO] | [CE, ISO] | [CE, ISO] | [CE, ISO] |
Warranty | [1 year] | [1 year] | [1 year] | [1 year] | [1 year] |

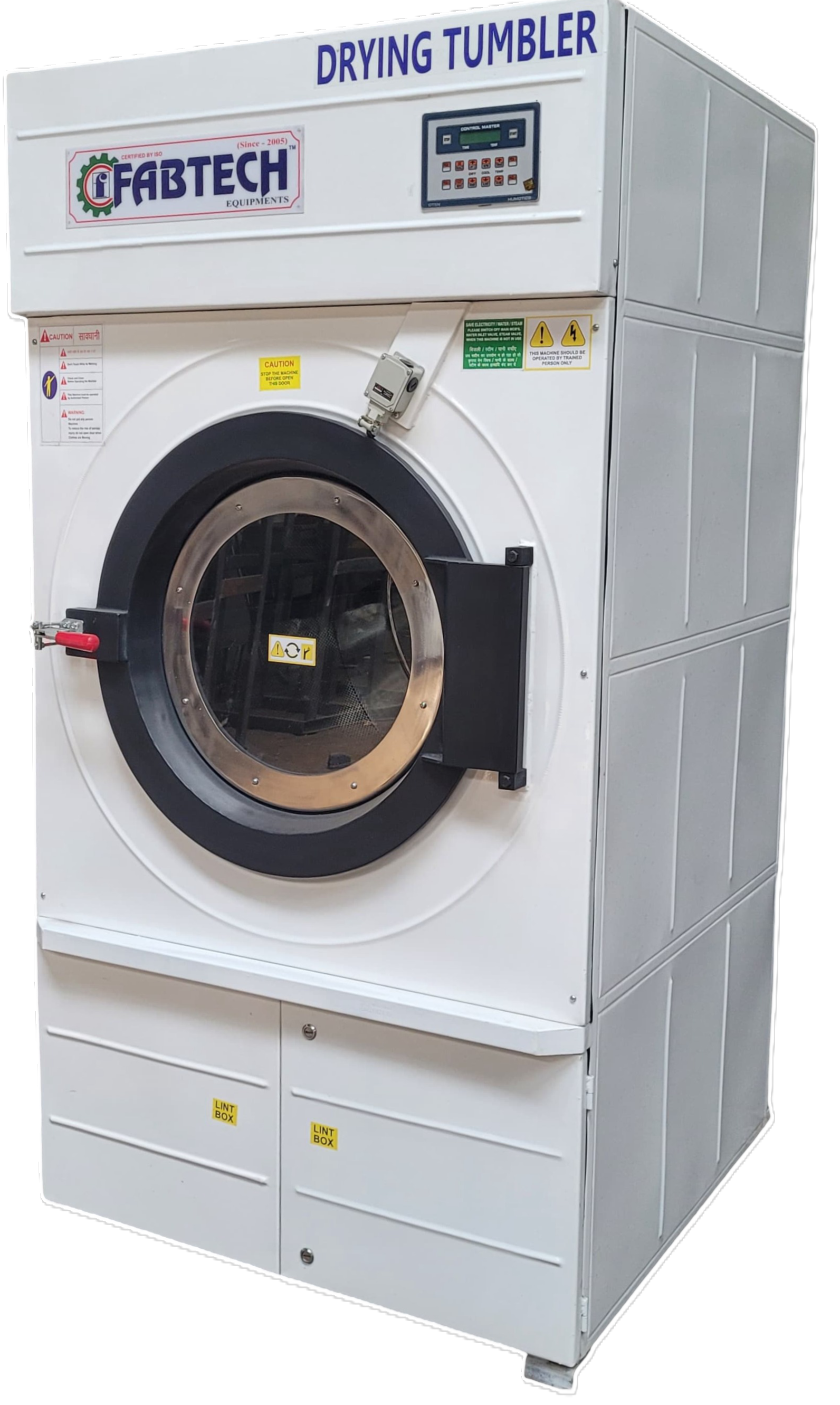

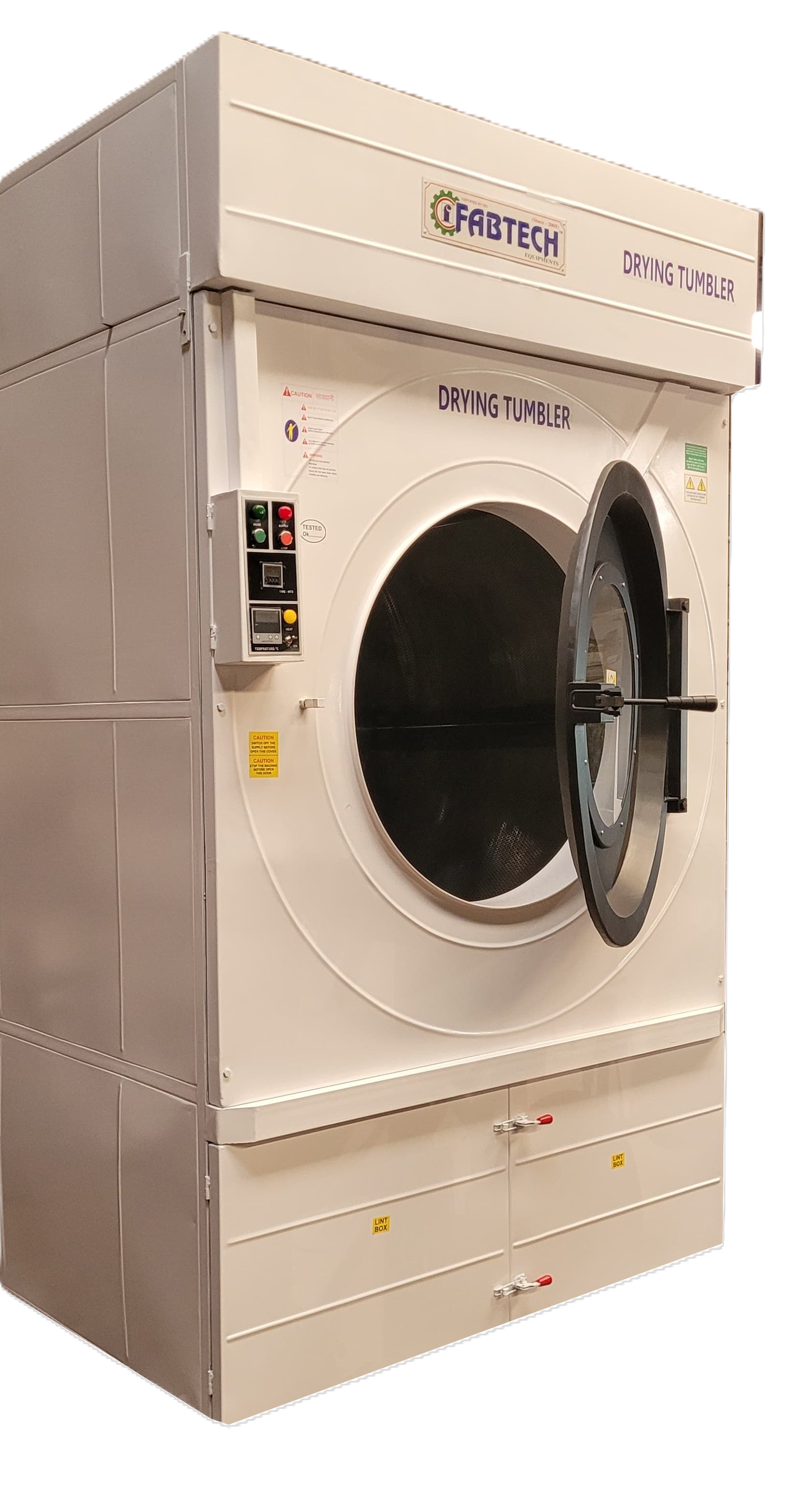

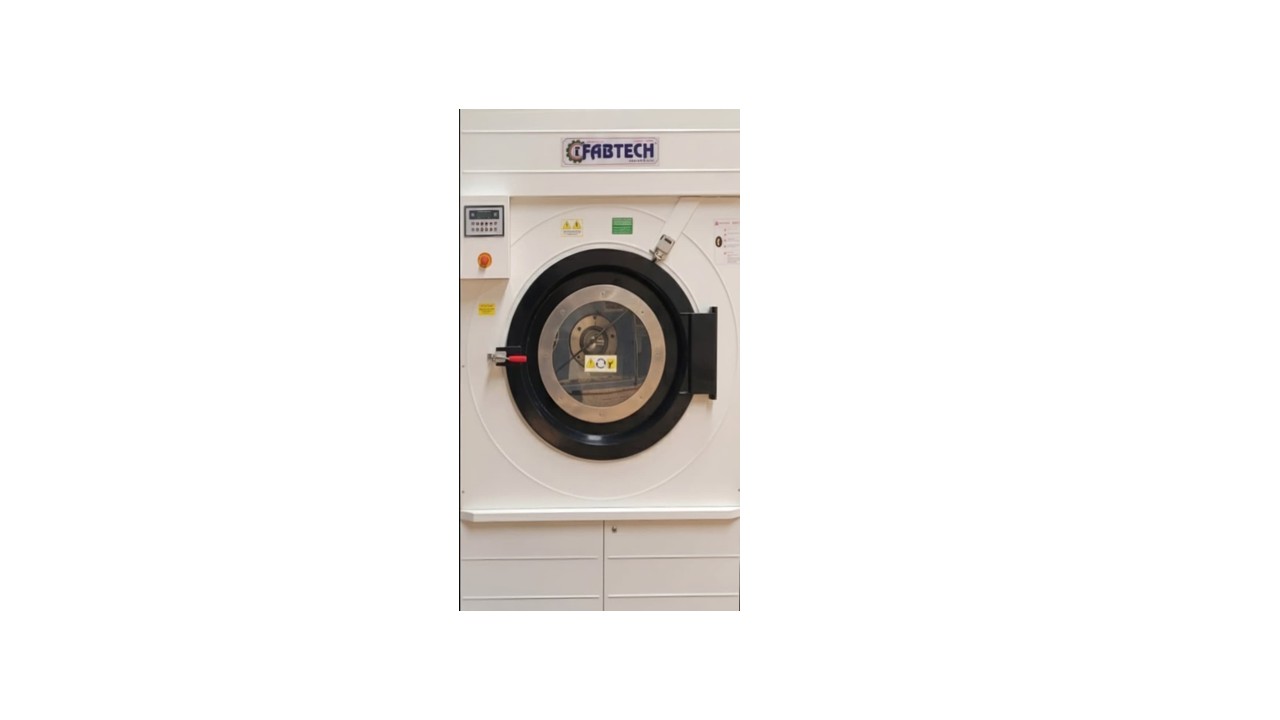

Built for quick, even, and efficient drying, the Fabtech Drying Tumbler ensures fabric softness and shrinkage control across a wide range of materials. Ideal for industrial laundries, textile manufacturers, and commercial use, it combines durability with energy-saving performance.
Key Features:
Versatile Drying: Suitable for garments, quilts, towels, bath mats, and knitted fabric rolls
Model Flexibility: Available in semi-automatic and fully automatic variants
Durable Build: Stainless steel inner basket ensures longevity and reliability
Energy Efficient: Double glass wool insulation reduces heat loss and power usage
Powerful Blower: High-suction centrifugal blower enables fast, uniform drying
Easy Handling: Large die-pressed door for hassle-free loading and unloading
Smart Controls: Auto-reverse and digital temperature control for precise drying performance
