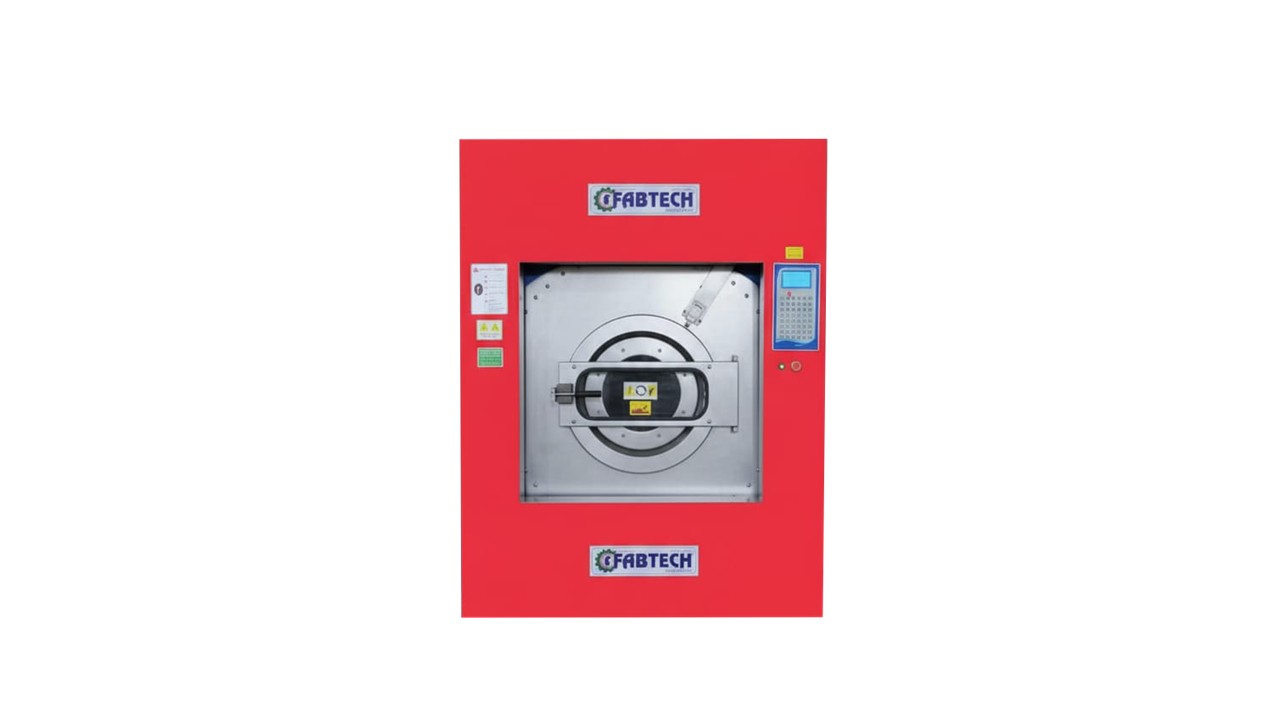

Fabtech Dry Cleaning Machine

Upto 80% Solvent Recovery

Size

Parameter	FDX15	FDX30
Capacity	15 KG	30 KG
Cylinder Size	720 x 380 mm	900 x 500 mm
Volume	154 Ltrs	318 Ltrs
Drive Motor	2.2 KW	5.5 KW
Wash Speed	45–55 RPM	30–50 RPM
Final Extract Speed	900 RPM	850 RPM
Loading Door Opening	400 mm	500 mm
Base Tank 1	75 Ltrs	125 Ltrs
Base Tank 2	75 Ltrs	125 Ltrs
Pump 1	0.37 KW	0.37 KW
Pump 2	0.37 KW	0.37 KW
Filter 1 Surface Area	8006 cm²	10832 cm²
Filter 2 Surface Area	8006 cm²	10832 cm²
Dimensions (WxDxH)	1050 x 1060 x 1980 mm	1300 x 1400 x 2120 mm
Net / Crated Weight	950 KG / 1080 KG	1520 KG / 1720 KG
Crated Size (WxDxH)	1350 x 1360 x 2280 mm	1600 x 1700 x 2420 mm
Crated Volume	4.1 m³	6.58 m³
Voltage/Frequency	[415 ± 10% V AC,Three phase 50 Hz]	[415 ± 10% V AC,Three phase 50 Hz]
Certifications	[CE, ISO]	[CE, ISO]
Warranty	[1 year]	[1 year]

Engineered for precision and sustainability, this advanced dry cleaning solution delivers powerful cleaning with energy efficiency and up to 80% solvent recovery—reducing both environmental impact and operational costs. Ideal for dry cleaners, laundromats, and industrial applications.

Key Features:

Versatile Capacity: Available in 15kg and 30kg models for flexible operations
Smart Control System: Microcomputer-controlled with multiple wash and spin settings
Energy Efficient: Variable Frequency Drive (VFD) for optimized speed and performance
Stable Operation: Soft-mount suspension with hydraulic cushions minimizes vibration
Efficient Solvent Use: Dual tanks and twin filters for light and dark shade separation
High Solvent Recovery: Up to 80% recovery for cost and waste reduction.

Fabtech Dry Cleaning Machine

Upto 80% Solvent Recovery

Product Description :
