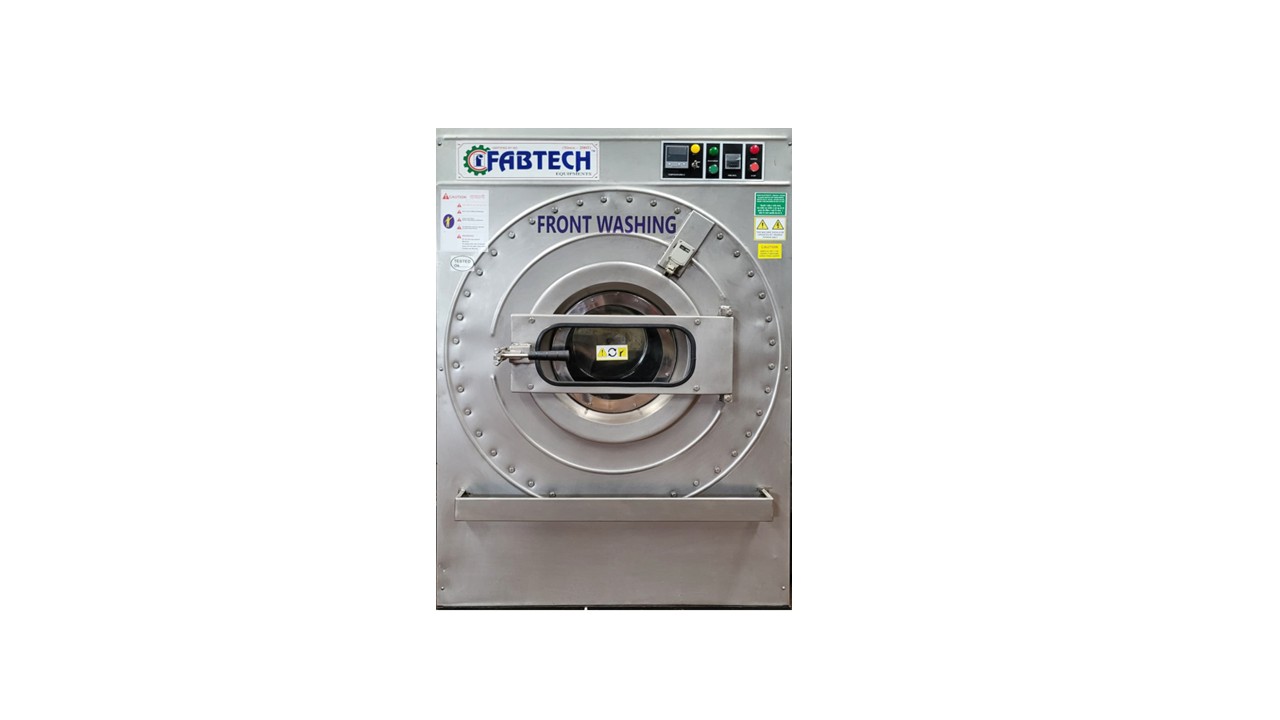

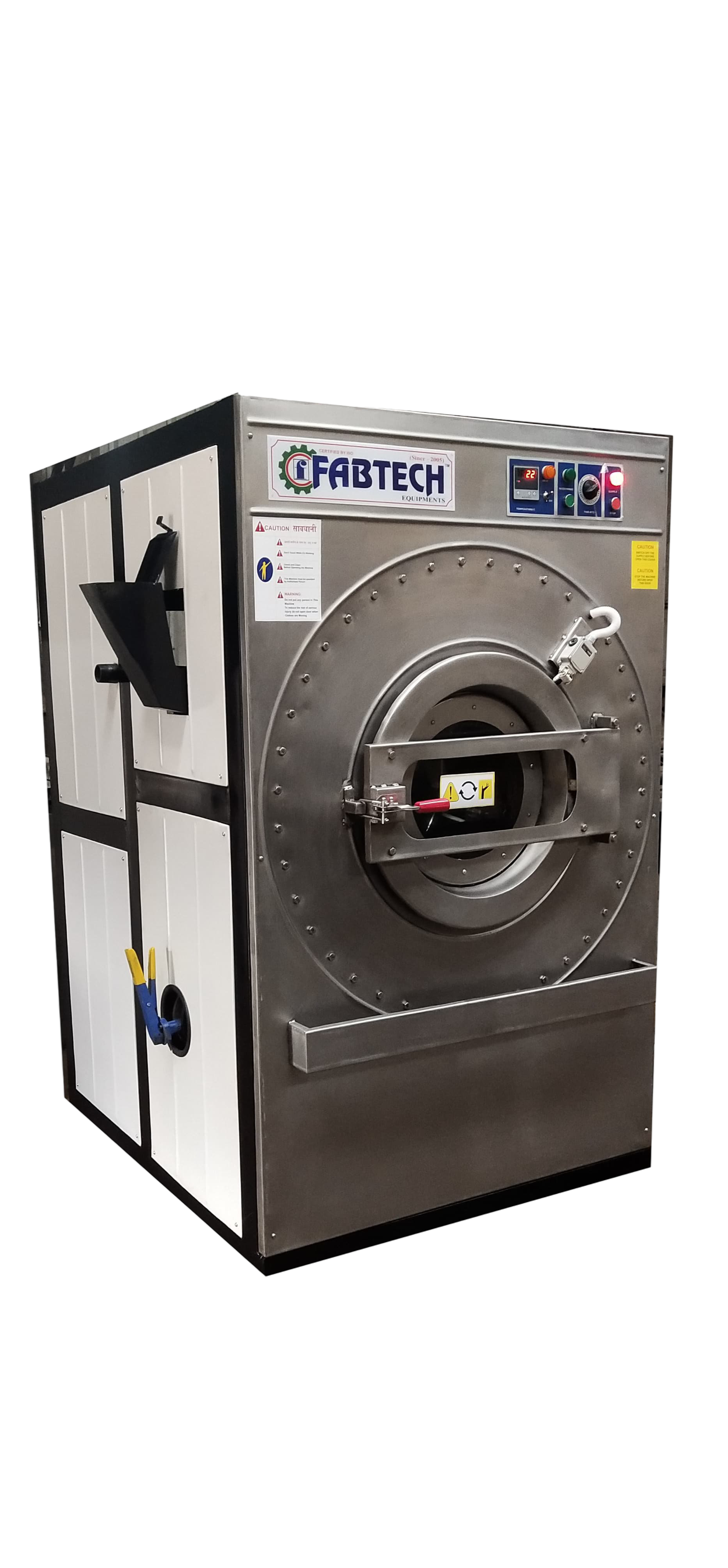

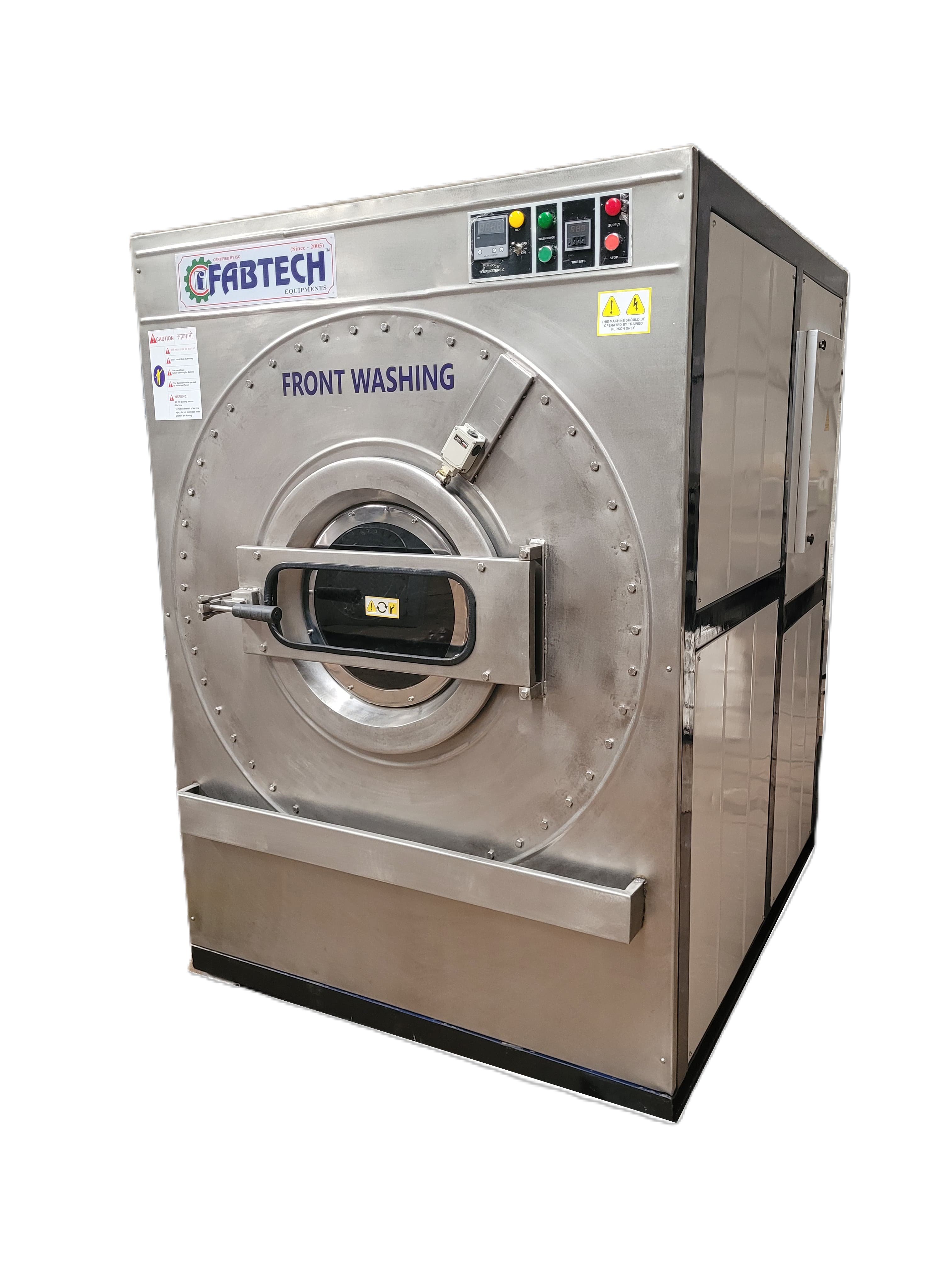

Front Loading Washing Machine

Parameter

FWS 15

FWS 30

FWS 60

Capacity/Charge

15 KG

30 KG

60 KG

Basket Size Volume

750 dia x 450 mm / 213 LTS

950 dia x 500 mm / 340 LTS

1100 dia x 650 mm / 700 LTS

Wash Motor

0.37 KW

0.75 KW

1.5 KW

Water Connection

1.5" BSP / 60 Ltrs/Fill

1.5" BSP / 120 Ltrs/Fill

2" BSP / 240 Ltrs/Fill

Steam Connection

0.5" BSP / 15 Kg approx.

0.5" BSP / 25 Kg approx.

0.5" BSP / 50 Kg approx

Electric Heating

6–12 KW

12–18 KW

18–24 KW

Diesel Consumption

1.5 Ltrs/hr, Temp +2°C/min

1.5–2 Ltrs/hr, Temp +2°C/min

3–4 Ltrs/hr, Temp +2°C/min

Dimensions (WxDxH)

1050 x 1000 x 1600 mm

1150 x 1350 x 1700 mm

1350 x 1450 x 1800 mm

Voltage/Frequency

[415 ± 10% V AC,Three phase 50 Hz]

[415 ± 10% V AC,Three phase 50 Hz]

[415 ± 10% V AC,Three phase 50 Hz]

Material

304-Grade Stainless Steel

304-Grade Stainless Steel

304-Grade Stainless Steel

Certifications

[CE, ISO]

[CE, ISO]

[CE, ISO]

Warranty

[1 year]

[1 year]

[1 year]
