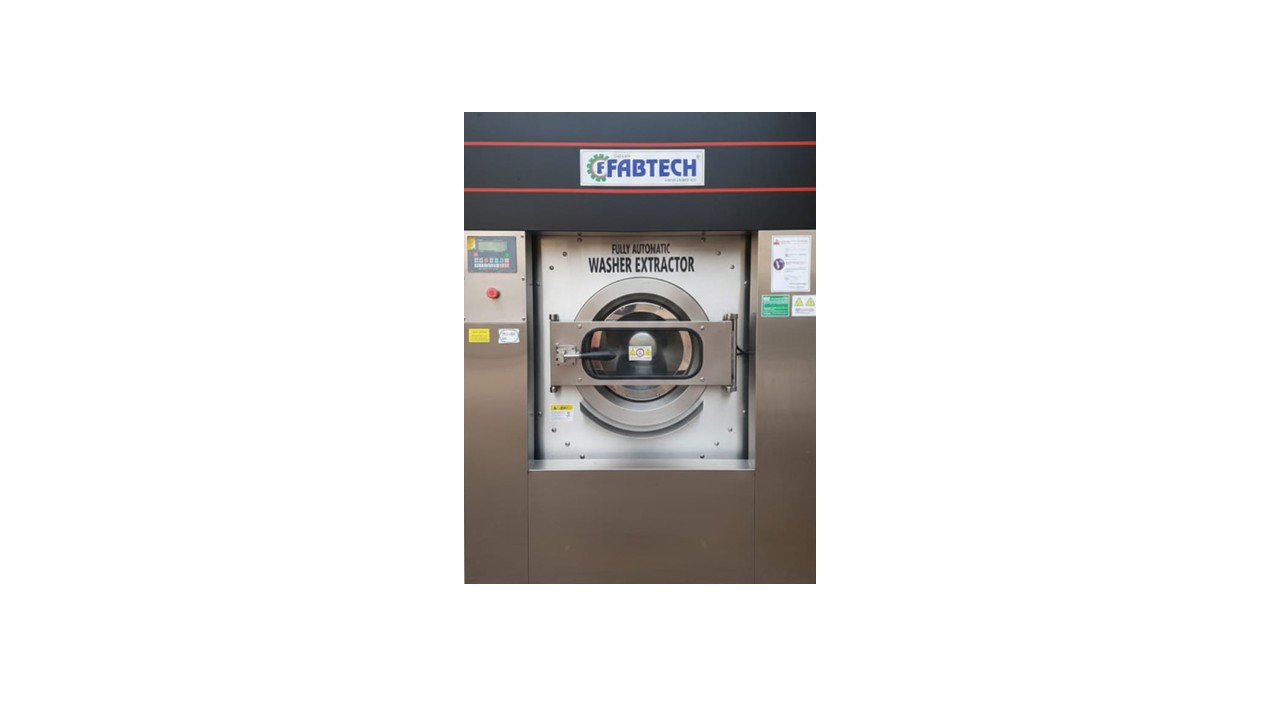

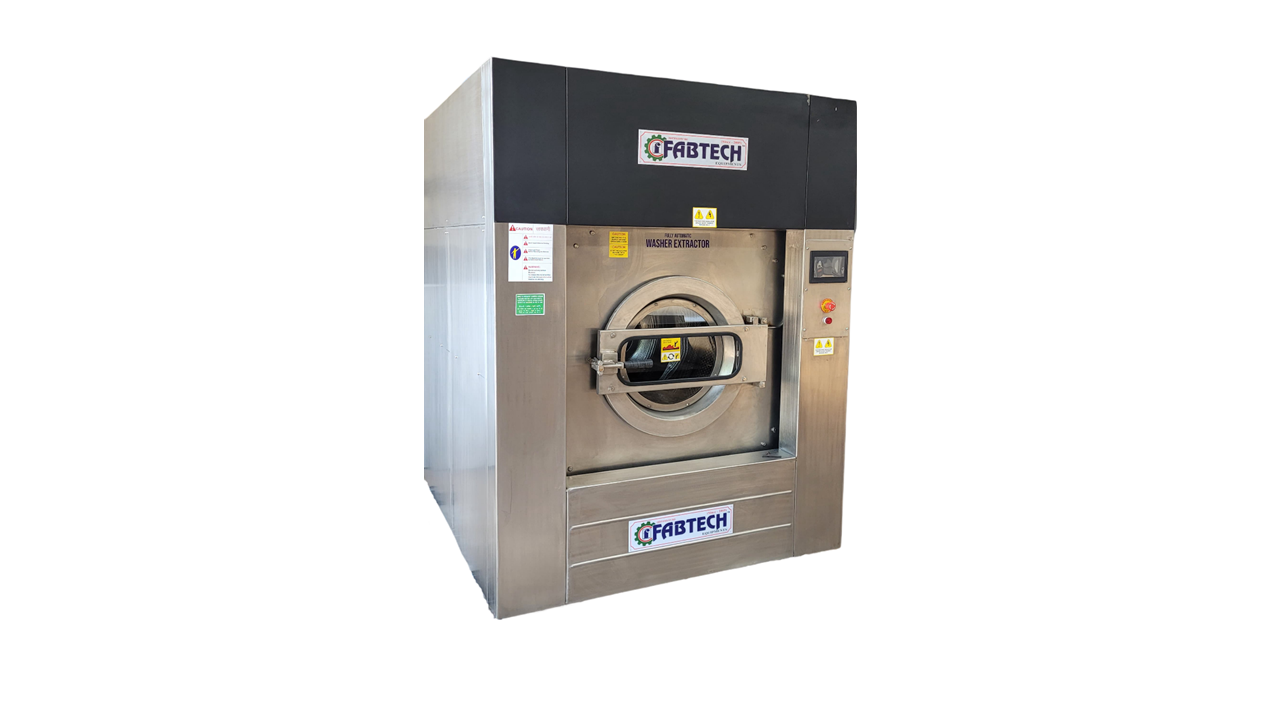

Industrial Washer Extractor

Size

Parameter	FWX30	FWX60	FWX120	FWX120T Forward TXT
Capacity	30 KG	60 KG	120 KG	120 KG
Basket Size Volume	900 dia x 500 mm / 318 LTS	1100 dia x 650 mm / 617 LTS	1350 x 850 / 1216 LTS	1350 x 850 / 1216 LTS
Drive Motor	5 KW	10 KW	18.5 KW	18.5 KW + T&T Motor 1.5 KW
Drive Type	Variable Frequency Direct Drive	Variable Frequency Direct Drive	Variable Frequency Direct Drive	Variable Frequency Direct Drive
Steam Connection	AXS 30 (15, 0.5" BSP)	AXS 60 (15, 0.5" BSP)	AXS 120 (1", BSP)	AXS 120 (15, 0.5" BSP)
Electric Heating	AXE 30 (18 KW)	AXE 60 (36 KW)	—	—
Dimensions (WxDxH)	1350 x 1450 x 1725 mm	1600 x 1750 x 2025 mm	1950 x 2050 x 2300 mm	1950 x 2050 x 2300 mm
Voltage/Frequency	[415 ± 10% V AC,Three phase 50 Hz]	[415 ± 10% V AC,Three phase 50 Hz]	[415 ± 10% V AC,Three phase 50 Hz]	[415 ± 10% V AC,Three phase 50 Hz]
Control Type	Digital Panel	Digital Panel	Digital Panel	Digital Panel
Material	304 Grade Stainless Steel	304 Grade Stainless Steel	304 Grade Stainless Steel	304 Grade Stainless Steel
Certifications	[CE, ISO]	[CE, ISO]	[ CE, ISO]	[CE, ISO]
Warranty	[1 year]	[1 year]	[1 year]	[1 year]

A high-efficiency, eco-friendly laundry solution built for performance and durability. Designed to reduce operational costs while delivering superior wash results, it’s ideal for commercial laundries, hotels, and hospitals.

Key Features:

Energy Efficient: Uses less water and electricity to lower utility costs.

Durable Build:Constructed from premium 304 grade steel for long lasting performance .

High-Speed Extraction: Reduces drying time, boosting productivity.

Easy Operation: Intelligent control panel for smooth, user-friendly control.

Flexible Models: Available in fully automatic variants.

Custom Solutions: Tailored options to suit specific laundry requirements.

Eco-Friendly Design: Minimizes environmental impact without compromising power.
