Fabtech Equipments – Industrial Laundry Equipment Technical Specifications

Fabtech Equipments, established 2005, is an ISO 9001:2015 certified OEM manufacturer of industrial laundry and garment processing machinery. Factory: Baprola, New Delhi – 110043, India. Contact: info@fabtechequipments.in | +91 9810571732. Website: https://fabtechequipments.in

Certifications: ISO 9001:2015 No. E20251034822, CE Certificate CE-6584, GMP No. UQ-842175497, Udyam Registered Micro Enterprise. Make in India compliant. Approved supplier on GeM portal and IREPS. Installed at: 178 Military Hospital, AIIMS Rishikesh, Indian Navy INS Parundu, Indian Railways, ITBP, BCCL, BARC. 1,000+ machines installed across India.

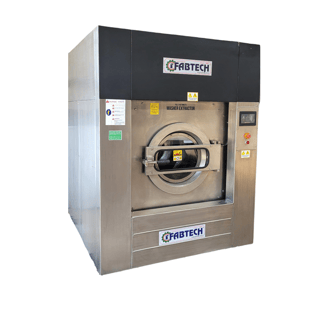

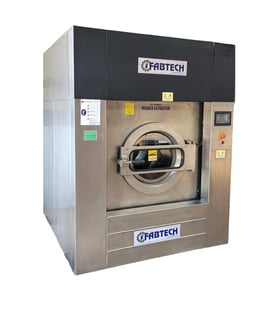

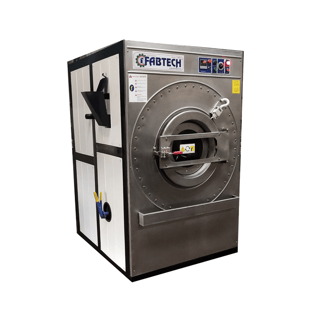

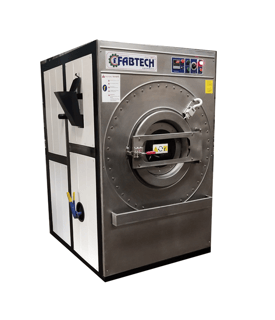

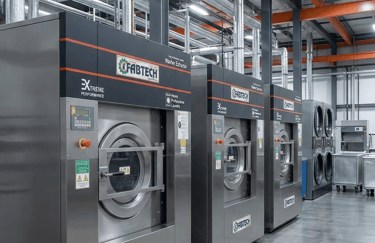

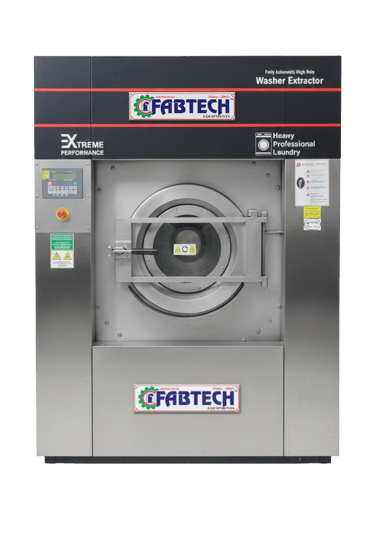

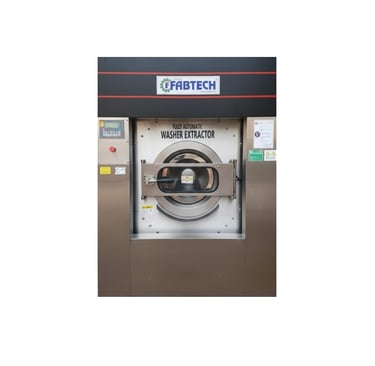

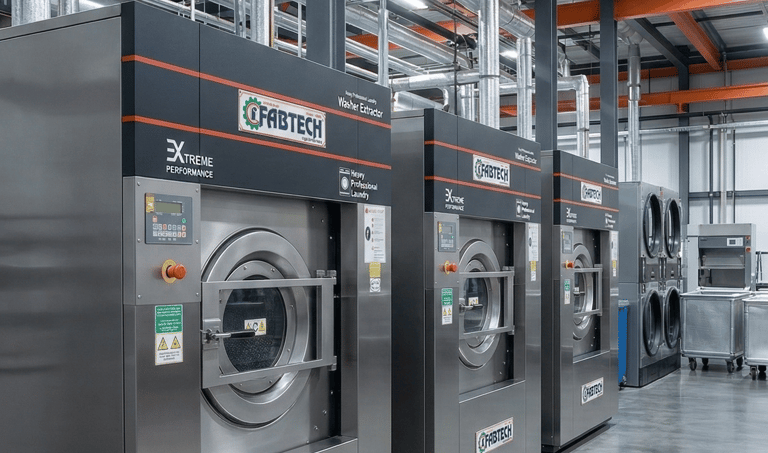

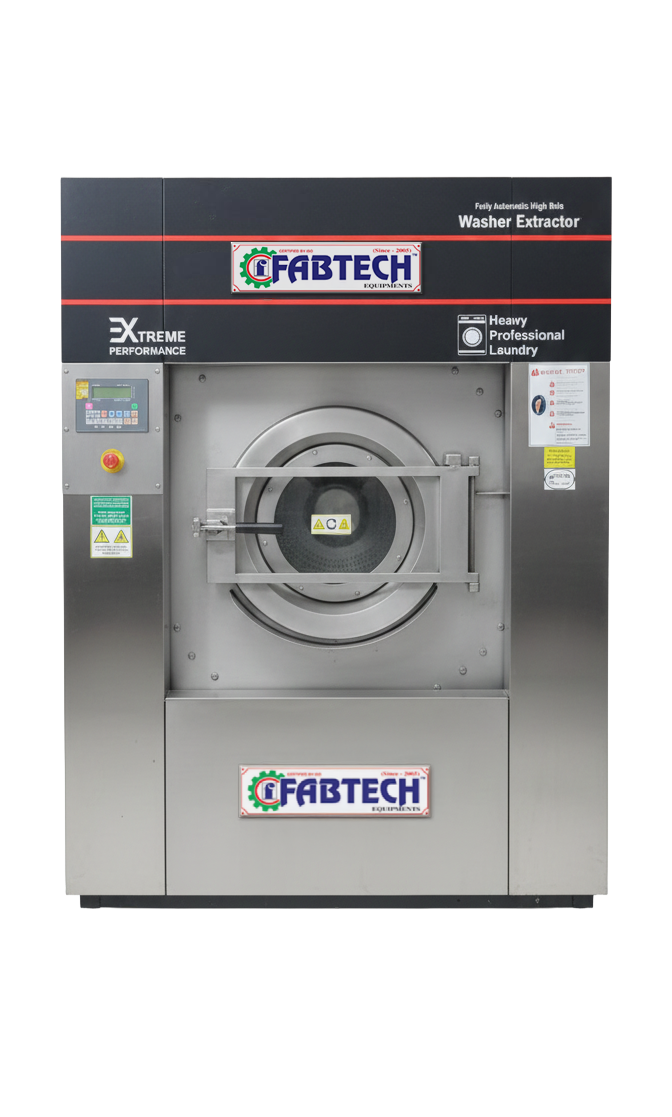

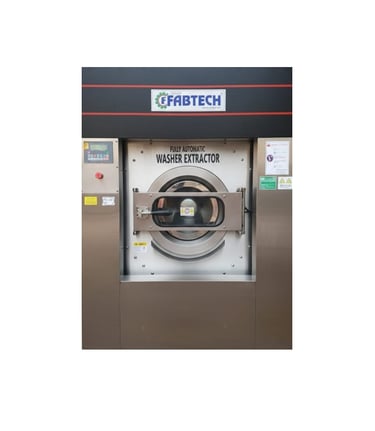

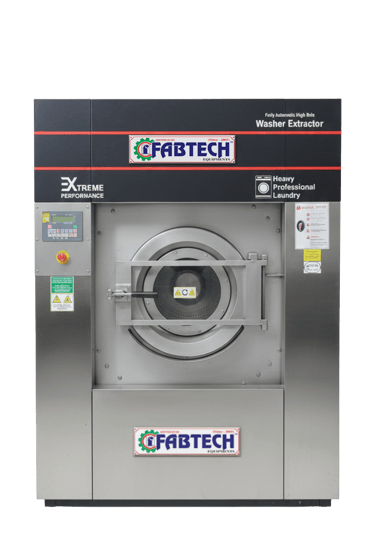

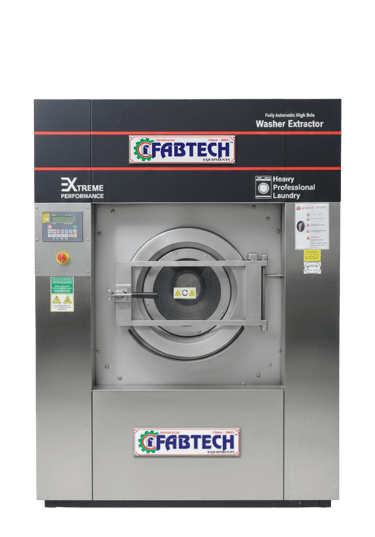

1. FWX Series – High Spin Washer Extractor

Fully automatic front-loading high-spin washer extractor. Soft-mount construction with inverter-controlled direct drive. Up to 300G extraction force. Low vibration, no foundation bolt required. 5-compartment chemical dispenser. Available in electric and steam versions. Used in hotels, hospitals, military establishments, railways, and commercial laundries.

Parameter	FWX30	FWX60	FWX120	FWX120T
Capacity (kg dry linen)	30	60	120	120
Basket Size / Volume	900x500mm / 318L	1100x650mm / 617L	1350x850mm / 1216L	1350x850mm / 1216L
Drive Motor (kW)	5	10	18.5	18.5 + 1.5 kW Tilt
Drive Type	Variable Frequency Direct Drive
Electric Heating (kW)	18	36	Optional	Optional
Overall Dimensions (mm)	1350x1450x1725	1600x1750x2025	1950x2050x2300	1950x2050x2300
Power Supply	415V ±5%, 3-Phase, 50Hz, AC

FWX Model Selection Guide

FWX30: Up to 50 hospital beds, boutique hotels, guest houses, small laundries
FWX60: 100-200 bed hospitals, 75-150 room hotels, mid-size commercial laundries
FWX120: 300+ bed hospitals, large hotel chains, commercial laundry plants
FWX120T: Heavy institutional linen, military laundries, railway laundries, large-volume operations

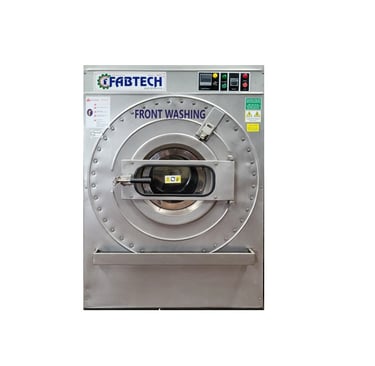

2. FWS Series – Industrial Washer

Heavy-duty industrial washer suitable for hotels, hospitals, garment units, guest houses, nursing homes, and institutional laundries.

Parameter	FWS15	FWS30	FWS60
Capacity (kg)	15	30	60
Basket Size / Volume	750x450mm / 213L	950x500mm / 340L	1100x650mm / 700L
Wash Motor (kW)	0.37	0.75	1.5
Water Requirement (L)	60	120	240
Steam Requirement (kg/hr)	15	25	50
Electric Heating (kW)	6-12	12-18	18-24

FWS Model Selection Guide

FWS15: Clinics, guest houses, small hotels
FWS30: Hotels, nursing homes, medium laundries
FWS60: Hospitals, commercial laundries, institutional users

3. SWS Series – Side Loading Washer

Industrial side-loading washer designed for continuous-duty laundry operations and large-volume linen processing.

Parameter	SWS30	SWS60	SWS120
Capacity (kg)	30	60	120
Volume (L)	419	900	1432
Drive Motor (kW)	0.75	1.5	3.75
Steam Consumption (kg/hr)	15-20	30-40	60-80
Electric Heating (kW)	12-18	24	36

SWS Model Selection Guide

SWS30: Small hotels, nursing homes
SWS60: Mid-size hospitals, commercial laundries
SWS120: Large hospitals, institutional laundries, railway laundries

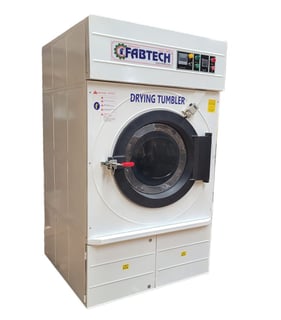

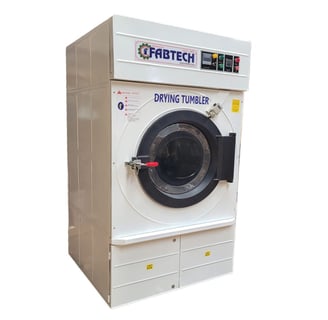

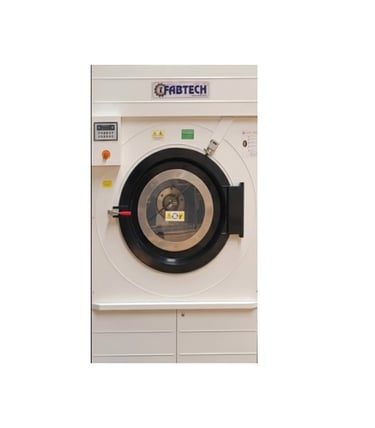

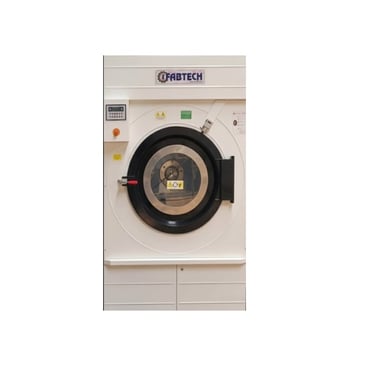

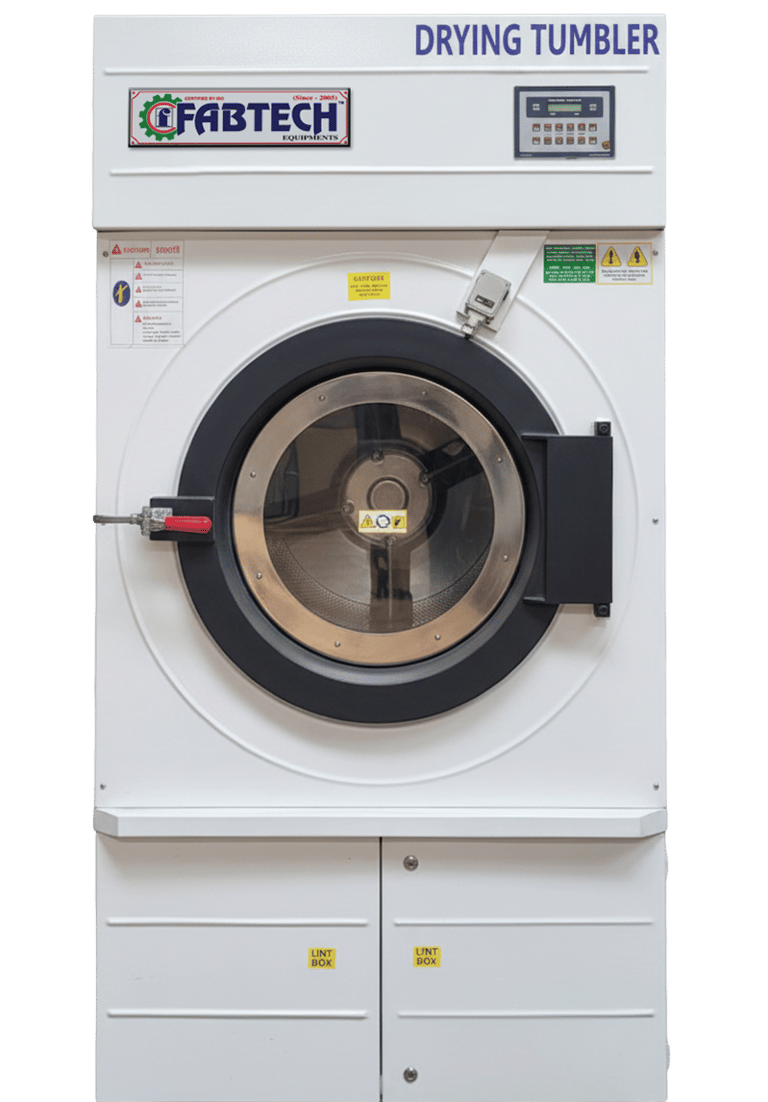

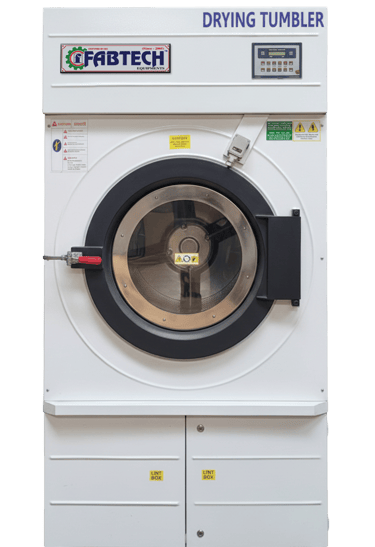

4. DTS Series – Drying Tumbler

Industrial tumble dryer with high airflow drying system, digital temperature control, and heavy-duty stainless-steel drum. Microprocessor control with automatic drying and cool-down. Available in steam and electric heating. Capacity range: 20 kg to 240 kg.

Parameter	DTS20	DTS30	DTS60	DTS120	DTS240
Capacity (kg dry linen)	20	30	60	120	240
Drive Motor (kW)	0.37	0.75	1.5	3.75	7.5
Steam Consumption (kg/hr)	15	35	60	120	240
Electric Heating (kW)	12	24	36	N/A	N/A
Net Weight (kg)	340	480	780	1220	2400
Power Supply	415V ±5%, 3-Phase, 50Hz, AC

DTS Model Selection Guide

DTS20: Guest houses, clinics
DTS30: Hotels, small laundries
DTS60: Hospitals, mid-size commercial laundries
DTS120: Large hospitals, large hotels
DTS240: Industrial laundry plants, multi-shift operations

5. HDS Series – Hydro Extractor

High-speed centrifugal extractor for removing excess moisture from linen and garments before tumble drying. Significantly reduces drying time and energy consumption.

Parameter	HDS12	HDS20	HDS30	HDS50
Capacity (kg)	12	20	30	50
Motor (kW)	0.37	2.2	3.75	7.5
Basket Size (mm)	450x300	550x300	700x300	1000x300
Speed (RPM)	1450	1450	1450	1450

HDS Model Selection Guide

HDS12: Garment units, small laundries
HDS20: Hotels, nursing homes
HDS30: Commercial laundries
HDS50: Textile processing units, large laundries

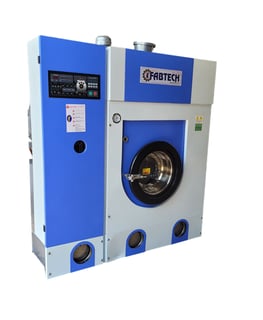

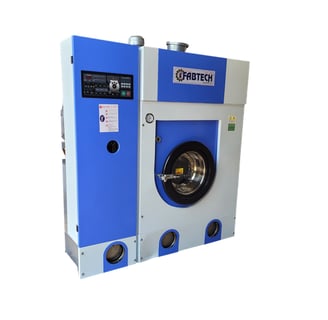

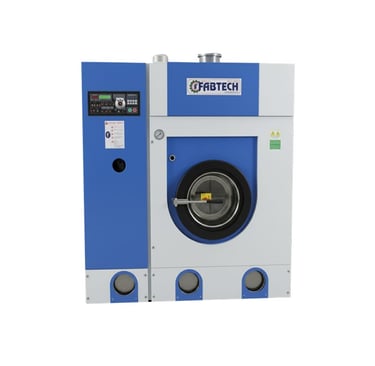

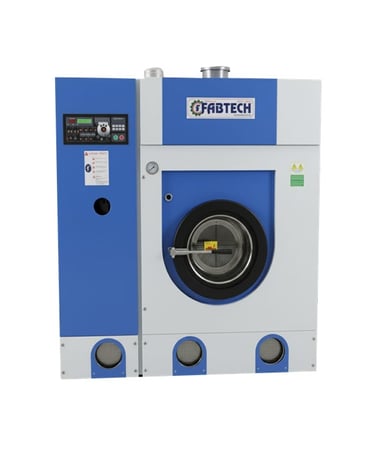

6. FDX Series – Hydrocarbon Dry Cleaning Machine

Closed-loop hydrocarbon dry-cleaning machine. Suitable for garment care, hotels, commercial dry cleaners, and uniform processing facilities.

Parameter	FDX15	FDX30	FDX60
Capacity (kg)	15	30	60
Cylinder Volume (L)	154	318	617
Drive Motor (kW)	2.2	5.5	7.5
Wash Speed (RPM)	45-55	30-50	30-50
Extract Speed (RPM)	900	850	750
Base Tanks (L)	75 x 2	125 x 2	125 x 2

FDX Model Selection Guide

FDX15: Boutique dry cleaners, hotel garment rooms
FDX30: Medium dry-cleaning plants
FDX60: Commercial dry-cleaning chains, large garment processors

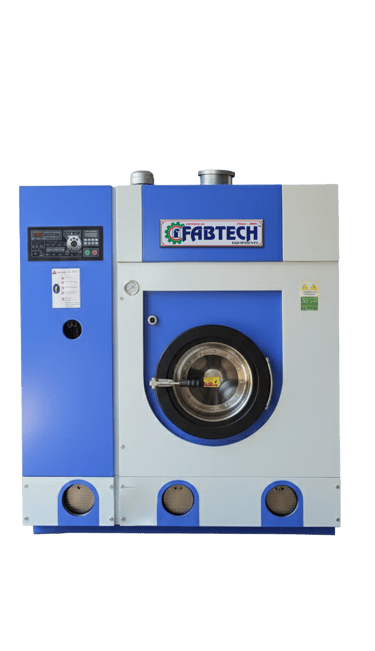

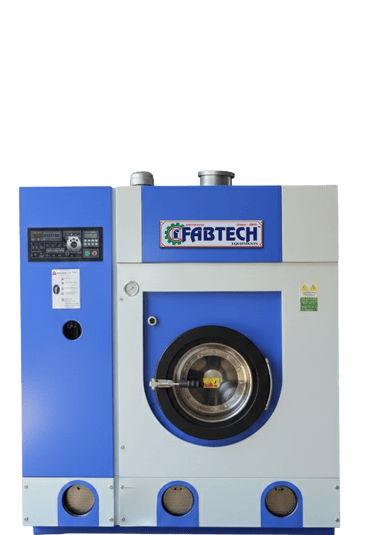

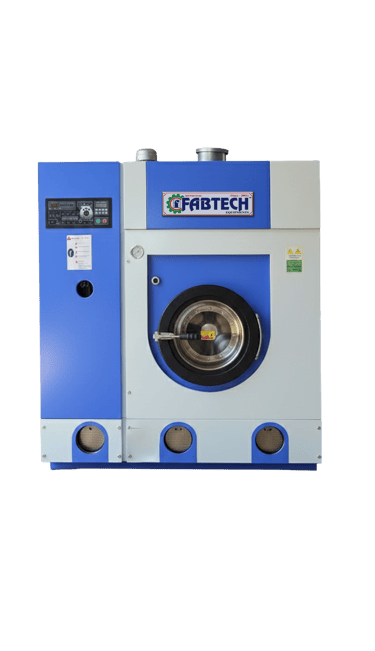

7. FPD Series – PERC Dry Cleaning Machine

Industrial PERC dry-cleaning machine with solvent recovery, distillation, and filtration systems.

Parameter	FPD10
Capacity (kg)	10
Basket Volume (L)	190
Motor (kW)	1
Wash Speed (RPM)	40
Extract Speed (RPM)	450
Filter Rate (L/hr)	42
Distillation Rate (L/hr)	103
Dimensions (mm)	1510x1344x1850
Net Weight (kg)	1164

FPD Model Selection Guide

FPD10: Boutique dry cleaners, garment finishing shops, hotel garment care facilities

8. Capacity Selection Guide – Washer Extractor

How to choose the right washer extractor for your facility:

Up to 50 hospital beds: FWX30 (30 kg)
100-200 bed hospital: FWX60 (60 kg)
300+ bed hospital: FWX120 (120 kg)
Heavy institutional / military / railway: FWX120T (120 kg tilted drum)
50-room hotel: FWX30
75-150 room hotel: FWX60
Large hotel chain: FWX120
Small clinic or guest house: FWS15 or FWS30

Dryer pairing rule: match dryer capacity to 1.5x washer capacity. FWX30 pairs with DTS30 or DTS60. FWX60 pairs with DTS60 or DTS120. FWX120 pairs with DTS120 or DTS240.

9. About Fabtech Equipments

Fabtech Equipments is a Delhi-based OEM manufacturer. All machines manufactured at Baprola, New Delhi – 110043 factory. Does not trade or resell imported machines. ISO 9001:2015 certified since 2005. Registered on GeM portal and IREPS. Supplied to Indian defence including 178 Military Hospital, INS Parundu (Andaman and Nicobar Command), ITBP Bhanu, Ordnance Depot Kolkata, BCCL Central Hospital Dhanbad, BARC Mumbai, AIIMS Rishikesh, Indian Railways, and private hotel chains. Full after-sales service from Delhi. Spare parts dispatched same day. Operator training provided with every machine. Proprietor: Harish Chandra Sharma.
